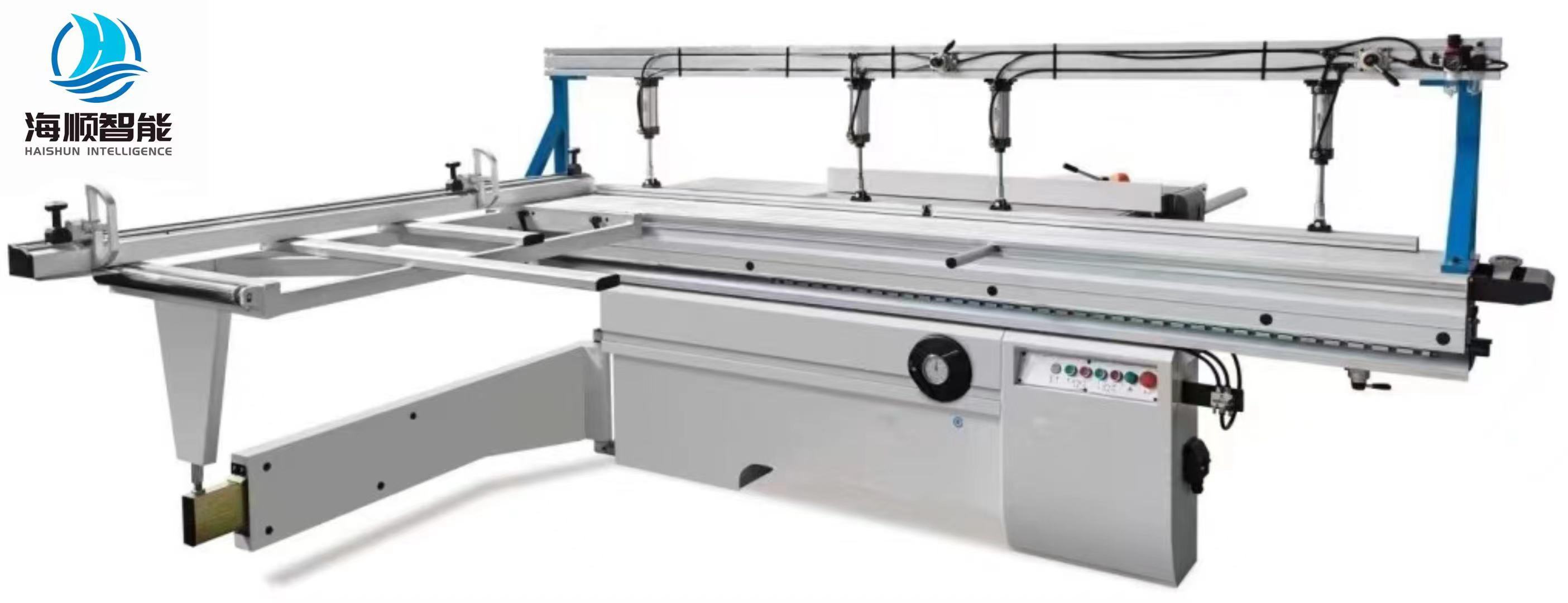

Precision push table saw for aluminum template

1. Special 4KW motor
2. Swedish SKF bearings
3. Imported Haupt saw blade
4. Schneider Low Voltage Appliances
5. Joint Venture JELPC Pneumatic Components

Main technical parameters

1. Table area
2. Main motor power----------5.5 kW
3. Spindle speed----------4200r/min
4. Maximum cut stroke----------3000mm
5. Maximum size of saw blade---------355mm
6. Machine Tool Dimensions (Length x Width x Height)------3150x 2500x 1300mm
7. Weight of machine tools----------980Kg

Main features and functions

1. The thickness of sawed products is 4-8 mm
2. Sawing width * height: 3000*65MM
3. And match reasonable pressing device as required.
4. Saw blade angle 90-45
5. Increase PP board cutting and enlarge table top
6. Digital display device with arbitrary angle
