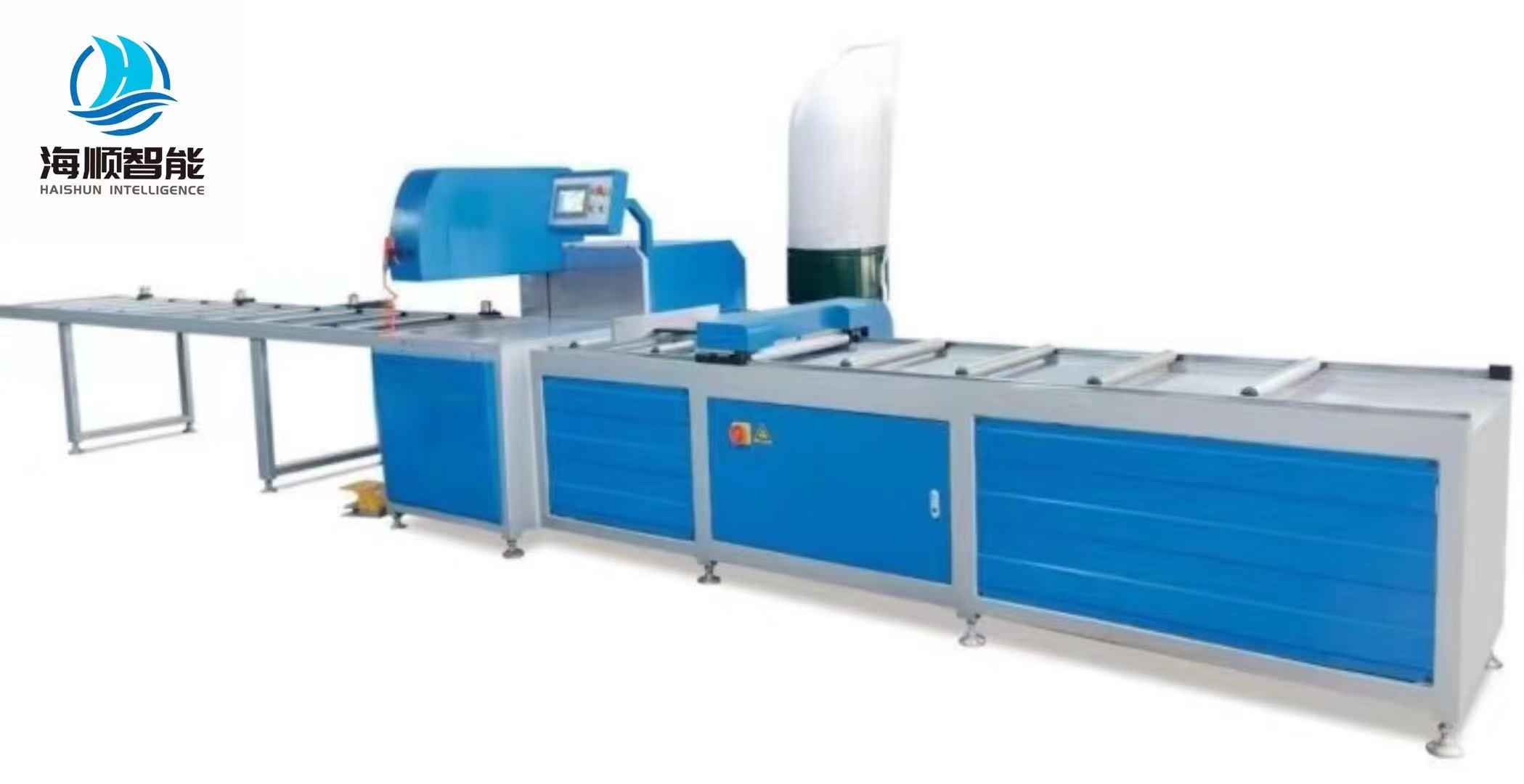

Heavy-duty numerical control fixed-length cutting saw HS-168D600

1. Special direct-connected 5.8 kW motor without belt drive. Swedish SKF bearing
2. Imported Haupt 600 Saw Blade
3. Panasonic CNC system of Japan, special servo motor for Beijiu Hollysys motor car, with anti-aluminum chip conduction function.
4. Silent hydraulic feed system
5. Schneider Low Voltage Appliances
6. Motor with 3C or CE certification

Main technical parameters

1. Sawing length---------180-3100mm (CNC positioning)
2. Saw width X height (bxh)------200X600mm
3. Main motor power-----------5.8 kW (direct-connected motor)
4. Main motor speed----------2850r/min
5. Use saw blade sizes-------φ 600 x φ 30 x 120T
6. Saw Blade Feed Speed----------0-3m/min
7. Return speed of saw blade---------2-3m/min
8. Working pressure----------0.6-0.8 Mpa
9. Operating voltage--------380V
10. Overall dimensions (length x width x height)------8000x 1950x 1500mm
11. Weight of machine tools--------1600Kg
12. Sawing cylinder stroke---------700mm

Main features and functions

1. The thickness of sawed products is 4-10 mm
2. Sawing width * Height: 200X600MM
3. 3.3. 2 m numerical control positioning frame and 4 m material supporting frame, and equipped with double cylinder material pressing device and aluminum chip shield as required.

4. Adopt mute oil pressure feed system with reverse buffer valve, which makes cutting more stable.
5. Dust collection device with aluminum chips (specially added configuration).
6. Specially equipped with length deviation alarm system, with length positioning accuracy of 0.1 mm.
7. With automatic cooling circulation device.
8. Lubricating device with automatic guide rail

Powerful Direct-Connected Motor for Enhanced Performance
Equipped with a robust 5.8 kW direct-connected motor without belt drive, this aluminum milling machine reduces maintenance and increases efficiency. The integration of Swedish SKF bearings ensures smooth operation, which is crucial for milling aluminium applications.​

Advanced CNC System for Precision Cutting
The HS-168D600 features a Panasonic CNC system from Japan, coupled with a special servo motor. This combination allows for precise control over cutting parameters, essential for aluminum CNC milling machine operations. The system's anti-aluminum chip conduction function enhances reliability during continuous use.​

Silent Hydraulic Feed System for Smooth Operation
Incorporating a silent hydraulic feed system with a reverse buffer valve, this cnc drilling machine ensures stable and smooth cutting processes. This feature minimizes vibrations and material deformation, resulting in high-quality finishes when milling aluminium.​

High-Quality Saw Blade for Accurate Cuts
The machine utilizes an imported Haupt 600 saw blade, known for its durability and precision. This component is vital for achieving clean and accurate cuts in aluminum milling machine tasks.​

User-Friendly Features for Enhanced Efficiency
The HS-168D600 includes a 2-meter numerical control positioning frame and a 4-meter material supporting frame, equipped with a double-cylinder material pressing device and aluminum chip shield as required. These features facilitate easy setup and operation, improving efficiency in aluminum CNC milling machine applications.

Product Advantages

• High Precision: The Panasonic CNC system ensures accurate cuts, essential for aluminum CNC milling machine operations.​
• Smooth Operation: The silent hydraulic feed system provides consistent blade movement, resulting in high-quality finishes when milling aluminium.​
• Robust Construction: High-quality components like Swedish SKF bearings enhance durability, making it a reliable choice for heavy-duty milling machine tasks.​
• Versatile Application: Capable of handling various aluminum profile sizes, it meets diverse cutting requirements in aluminum milling machine processes.

About Us

Industry Positioning: Foshan Haishun Intelligent Equipment Co., Ltd. stands as a leading manufacturer specializing in aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.​

Core Manufacturing Capabilities and Quality Assurance

• Independent R&D: Our in-house research and development team drives innovation, ensuring our products meet evolving industry standards.​
• Collaborative Management: By integrating collaborative management practices, we streamline production processes to enhance efficiency.​
• Quality Control: Product quality is our top priority, maintained through rigorous quality control measures.​

Production Strength in Numbers

• Export Experience: With over 20 years in the export market, our products have reached more than 40 countries, including regions in Southeast Asia, the Middle East, Europe, Africa, and South America.​
• Commitment to Sustainability: We are dedicated to sustainable development, focusing on energy-efficient manufacturing processes and the production of equipment that supports renewable energy sectors, such as photovoltaic solar processing equipment.​

Customer Collaboration Process

• Inquiry: Clients reach out with specific requirements.​
• Consultation: Our team provides tailored solutions based on client needs.​
• Production: Equipment is manufactured adhering to strict quality standards.​
• Delivery: Timely and secure shipment of products to the client's location.​
• Support: Ongoing technical support and after-sales service ensure optimal equipment performance.​
• Global Service Capability: Our extensive export experience and a network spanning over 40 countries enable us to offer localized services and support to clients worldwide.​

Partner with Haishun to leverage cutting-edge technology and superior service for your equipment needs.

FAQ

Who are we?

We are Foshan Haishun Intelligent Equipment Co., Ltd., a manufacturer specializing in aluminum formwork processing equipment and related machinery, with over 20 years of export experience to more than 40 countries.​

How can we guarantee quality?

Our dedicated technical production team prioritizes product quality, implementing strict quality control measures throughout the manufacturing process.​

What can you buy from us?

We offer a range of equipment, including aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.​

Why should you buy from us instead of other suppliers?

Our commitment to independent research and development, coupled with collaborative management and over two decades of export experience, ensures innovative, high-quality products that meet international standards.​

What services can we provide?

We provide comprehensive services, including pre-sales consultation, customized equipment solutions, timely delivery, and ongoing technical support and after-sales service.
