Product Introduction:
1. This machine is suitable for drilling, milling grooves, circular holes, irregular holes, lock holes and other processing procedures of aluminum alloy profiles
2. The workbench can be flipped 180 ° (+90 °, 0 °, -90 °) to process different surfaces on the profile, allowing for three surfaces to be clamped and formed in one go
3. The X, Y, and Z axes of the motor seat are guided by imported precision linear guides. The X axis is driven by a Chaochuan servo motor through a precision Taiwan cooperative reducer to drive high-precision helical gears and helical racks, using a Derus 4KW frequency converter. The Y and Z axes are driven by Chaochuan servo motors to drive high-precision rolling bead wire drives, using a special high-speed air-cooled spindle motor from Farlight (ER25). The operating system adopts the Red Sea CNC system, which is easy to operate, has high machining accuracy, good safety, and high efficiency.
Technical parameters:
Sawing length: 420-6000MM
Sawing width * height: 310 * 180 (600) MM/310 * 150 (550) MM
Main motor power: 4KW * 2 units
Main motor speed: 2840R/MIN
Saw blade size: 600 * 38 * 140T
Saw blade feed speed: 0-3/MIN
Saw blade return speed: 2-3m/min
Workbench rotation angle: 30 ° -90 ° -135 °
Saw blade swing angle: 90 ° -135 °
Working pressure: 0.6-0.8MPA
Working voltage: 380V
Dimensions: 7700-1800 * 1650MM
Machine weight: 2200KG
Versatile Processing CapabilitiesThis machine is adept at drilling, milling grooves, circular holes, irregular holes, lock holes, and other complex processing tasks on aluminum alloy profiles. Its multifunctionality streamlines operations, reducing the need for multiple machines and enhancing overall productivity.Innovative Workbench Design for Multi-Surface MachiningThe workbench features a 180° flip capability (+90°, 0°, -90°), enabling the processing of different surfaces on a profile. This design allows for three surfaces to be clamped and machined in a single setup, significantly improving efficiency and ensuring precision in CNC machining processes.High-Precision Linear Guide SystemsThe X, Y, and Z axes are guided by imported precision linear guides. The X-axis utilizes a Chaochuan servo motor coupled with a precision Taiwan cooperative reducer to drive high-precision helical gears and racks. The Y and Z axes are driven by Chaochuan servo motors operating high-precision rolling ball screws, ensuring meticulous movements essential for precision CNC machining.Advanced Spindle and Control SystemsEquipped with a Farlight high-speed air-cooled spindle motor (ER25) and operated via the Red Sea CNC system, the machine ensures high machining accuracy, user-friendly operation, safety, and efficiency. These features are crucial for CNC machining manufacturers seeking reliable and precise automatic saw cutting machines.
Product Advantages
- Enhanced Precision CNC Machining: The integration of high-precision linear guides and servo motors ensures meticulous machining processes, vital for CNC machining manufacturers.
- Flexible Multi-Angle Cutting: The workbench's 180° flip capability allows for comprehensive machining on multiple surfaces in one setup, increasing efficiency in automatic saw cutting operations.
- Robust and Reliable Performance: With powerful 4 kW motors and a sturdy build, the machine delivers consistent performance, essential for demanding CNC machining tasks.
- User-Friendly CNC System: The Red Sea CNC system offers intuitive operation, reducing the learning curve and enhancing productivity for CNC machining manufacturers.
About Us
Industry Positioning: Foshan Haishun Intelligent Equipment Co., Ltd. stands as a leading manufacturer specializing in aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.
Core Manufacturing Capabilities and Quality Assurance
- Independent R&D: Our in-house research and development team drives innovation, ensuring our products meet evolving industry standards.
- Collaborative Management: By integrating collaborative management practices, we streamline production processes to enhance efficiency.
- Quality Control: Product quality is our top priority, maintained through rigorous quality control measures.
Production Strength in Numbers
- Export Experience: With over 20 years in the export market, our products have reached more than 40 countries, including regions in Southeast Asia, the Middle East, Europe, Africa, and South America.
- Commitment to Sustainability: We are dedicated to sustainable development, focusing on energy-efficient manufacturing processes and the production of equipment that supports renewable energy sectors, such as photovoltaic solar processing equipment.
Customer Collaboration Process
- Inquiry: Clients reach out with specific requirements.
- Consultation: Our team provides tailored solutions based on client needs.
- Production: Equipment is manufactured adhering to strict quality standards.
- Delivery: Timely and secure shipment of products to the client's location.
- Support: Ongoing technical support and after-sales service ensure optimal equipment performance.
- Global Service Capability: Our extensive export experience and a network spanning over 40 countries enable us to offer localized services and support to clients worldwide.
Partner with Haishun to leverage cutting-edge technology and superior service for your equipment needs.
FAQ
Who are we?
We are Foshan Haishun Intelligent Equipment Co., Ltd., a manufacturer specializing in aluminum formwork processing equipment and related machinery, with over 20 years of export experience to more than 40 countries.
How can we guarantee quality?
Our dedicated technical production team prioritizes product quality, implementing strict quality control measures throughout the manufacturing process.
What can you buy from us?
We offer a range of equipment, including aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.
Why should you buy from us instead of other suppliers?
Our commitment to independent research and development, coupled with collaborative management and over two decades of export experience, ensures innovative, high-quality products that meet international standards.
What services can we provide?
We provide comprehensive services, including pre-sales consultation, customized equipment solutions, timely delivery, and ongoing technical support and after-sales service.

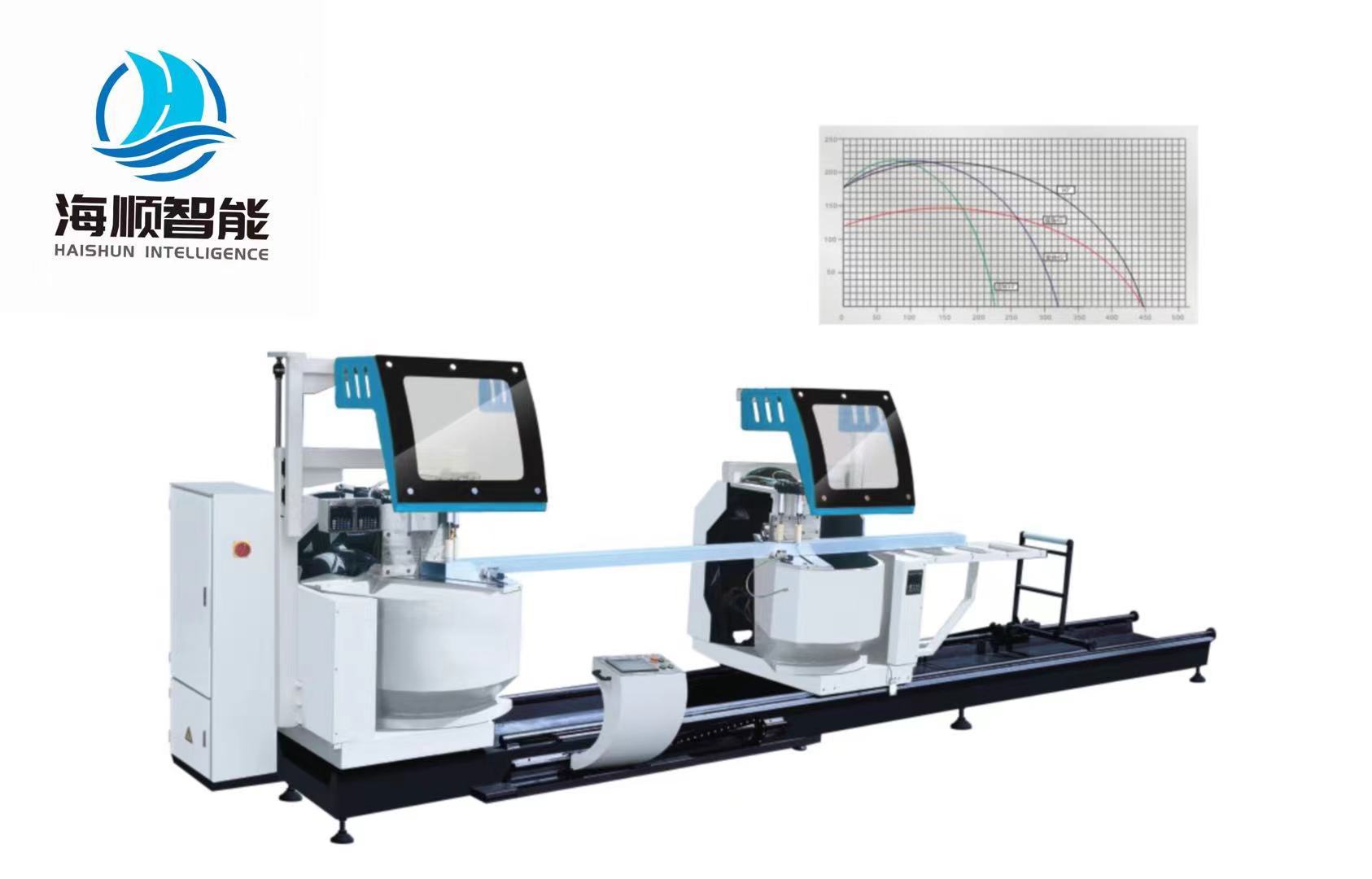

Elevate your CNC machining operations with the Heavy Duty CNC Composite Angle Double Head Cutting Saw (Five Axis). Contact us today to learn how this automatic saw cutting machine can enhance your production efficiency and precision.
