Product Introduction:
1. Adopting a specially designed Italian original straight out motor, without the need for transmission or spindle device, the inclined feed (using German cutting technology) has high glossiness on the cutting surface, effectively reducing the formation of cutting burrs.
2. Schneider low-voltage electrical appliances and Panasonic CNC systems ensure safe and reliable equipment operation, high precision, and stable operation.
3. Independent CNC arbitrary swing angle (20.5 ° -145 °) device
4. The independent saw blade chip discharge port is separated from the feed device and motor.
5. Adopting a closed-loop length positioning system, the servo motor drives the imported high-precision rack to move, and the dimensional accuracy is controlled by receiving the German ELGO magnetic ruler and reading head pulse signal, avoiding the accuracy decline caused by the bending and uneven wear of traditional lead screws due to their long size.
6. Specially designed emergency stop button, pressed in case of emergency, does not release the pressing material, and the motor returns to its position before stopping, ensuring that dangerous situations caused by the material not pressing the tool will not occur.
Technical parameters:
Sawing length: 6000MM
Sawing width * height: 150 * 260MM
Main motor power: 3KWX2 units
Main motor speed: 2850R/MIN
Saw blade size: 550X30X144T
Saw blade swing angle: 20.5 ° -90 ° -145 ° (CNC)
Saw blade feed rate: 0-3m/min
Saw blade return speed: 2-3m/min
Working pressure: 0.6-0.8mpa
Working voltage: 380V
Dimensions: 7500/9000X1700X1750MM
Machine weight: 2200KG
High-Performance Italian Direct-Drive Motors for Enhanced CuttingThis machine features Italian original direct-drive motors, eliminating traditional transmission and spindle devices. This innovative design significantly increases cutting efficiency and ensures smooth operation, making it ideal for hydraulic punch press machine applications where high precision is required.CNC Arbitrary Swing Angle for Flexible Cutting OptionsEquipped with an independent CNC arbitrary swing angle system, this saw allows precise cutting angles from 20.5° to 145°. This flexibility enables precise cuts for hydraulic hole punch press components, ensuring consistent, high-quality output.Advanced Hydraulic System for Smooth OperationsIntegrated with hydraulic punch press technology, this machine operates with enhanced stability and power distribution. The hydraulic feed system minimizes material deformation, reducing scrap and improving efficiency in hydraulic punch press machine operations.Closed-Loop Positioning for Unmatched AccuracyThe machine features a closed-loop length positioning system, driven by a servo motor and high-precision rack system. This system ensures dimensional accuracy in hydraulic hole punch press and aluminum profile cutting, meeting strict industrial standards.Optimized Chip Management System for Clean Work EnvironmentDesigned with an independent chip discharge port, this saw ensures effective aluminum chip removal, keeping the machine clean and reducing the risk of material contamination. This feature enhances the overall efficiency of hydraulic punch press fabrication processes.Safety-Enhanced Emergency Stop FunctionalityFor operator safety, the saw is equipped with a dedicated emergency stop button. In case of emergency, the machine automatically halts operations while securing the workpiece, making it ideal for high-volume hydraulic punch press machine operations.
Product Advantages
- Enhanced Cutting Efficiency: Direct-drive motors provide high glossiness on the cutting surface, effectively reducing the formation of cutting burrs.
- Precision and Stability: The integration of Panasonic CNC systems and Schneider electrical components ensures safe, reliable, and precise operations.
- Versatile Cutting Angles: The CNC arbitrary swing angle device allows for a wide range of cutting angles, accommodating various design requirements.
- Efficient Chip Management: The independent chip discharge system maintains a clean working environment and prevents chip accumulation.
- Accurate Length Positioning: The closed-loop positioning system ensures consistent dimensional accuracy, essential for high-quality aluminum processing.
About Us
Industry Positioning: Foshan Haishun Intelligent Equipment Co., Ltd. stands as a leading manufacturer specializing in aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.
Core Manufacturing Capabilities and Quality Assurance
- Independent R&D: Our in-house research and development team drives innovation, ensuring our products meet evolving industry standards.
- Collaborative Management: By integrating collaborative management practices, we streamline production processes to enhance efficiency.
- Quality Control: Product quality is our top priority, maintained through rigorous quality control measures.
Production Strength in Numbers
- Export Experience: With over 20 years in the export market, our products have reached more than 40 countries, including regions in Southeast Asia, the Middle East, Europe, Africa, and South America.
- Commitment to Sustainability: We are dedicated to sustainable development, focusing on energy-efficient manufacturing processes and the production of equipment that supports renewable energy sectors, such as photovoltaic solar processing equipment.
Customer Collaboration Process
- Inquiry: Clients reach out with specific requirements.
- Consultation: Our team provides tailored solutions based on client needs.
- Production: Equipment is manufactured adhering to strict quality standards.
- Delivery: Timely and secure shipment of products to the client's location.
- Support: Ongoing technical support and after-sales service ensure optimal equipment performance.
- Global Service Capability: Our extensive export experience and a network spanning over 40 countries enable us to offer localized services and support to clients worldwide.
Partner with Haishun to leverage cutting-edge technology and superior service for your equipment needs.
FAQ
Who are we?
We are Foshan Haishun Intelligent Equipment Co., Ltd., a manufacturer specializing in aluminum formwork processing equipment and related machinery, with over 20 years of export experience to more than 40 countries.
How can we guarantee quality?
Our dedicated technical production team prioritizes product quality, implementing strict quality control measures throughout the manufacturing process.
What can you buy from us?
We offer a range of equipment, including aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.
Why should you buy from us instead of other suppliers?
Our commitment to independent research and development, coupled with collaborative management and over two decades of export experience, ensures innovative, high-quality products that meet international standards.
What services can we provide?
We provide comprehensive services, including pre-sales consultation, customized equipment solutions, timely delivery, and ongoing technical support and after-sales service.

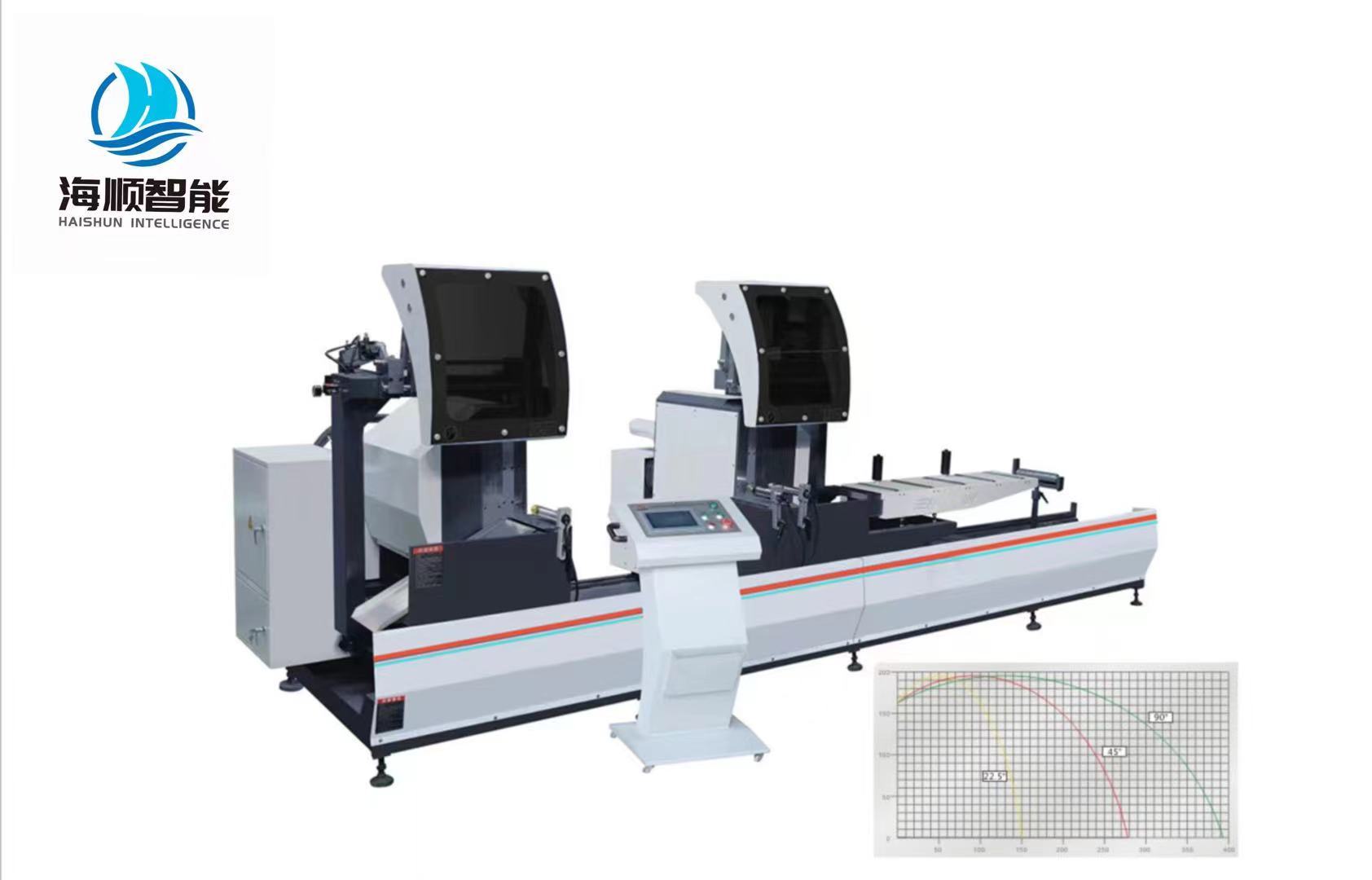

Elevate your aluminum processing capabilities with the CNC Double-Headed Cutting Saw with Arbitrary Angle. Contact us today to learn how this advanced cutting solution can enhance your production efficiency and product quality.
