Main technical parameters:
1. Specially designed direct coupled 5.5KW motor, no belt drive required.
2. SKF bearings from Sweden
3. Taiwan imports linear guides with high precision
4. Imported 600 saw blades
5. Panasonic CNC system and dedicated servo motor from Japan, with anti aluminum chip conductive function
6. Yade polite moving components
7. Schneider low-voltage electrical appliances
1. Sawing product thickness: 4-20 millimeters
2. Sawing width * height: 3000 * 160MM
3. Adjustable angle of saw blade: 90 ° -45 ° (digital display with communication for any angle)
4. Equipped with a reasonable pressing device, suitable for center point cutting
5. The cutting feed adopts servo control to control the feed speed and cutting length.
6. The positioning plate adopts servo control
7. The saw blade automatically lowers after cutting, which is safe and convenient.
8. Wear safety shields and safety barriers to prevent accidental operation and personal injury.
9. Guide rail travel, clean the rough tail and band saw blade cooling spray device
Technical parameters:
1. Workbench area: 3200X1200mm
2. Maximum sawing height: 160mm
3. Main electric power: 5.5KW
4. Walking servo motor power: 1KW
5. Positioning servo motor on the board: 750W
6. Spindle speed: 280r/min
7. Maximum cutting stroke: 3100mm
8. Maximum stroke of saw blade: 600mm
9. Adjustable angle of saw blade: 90 ° -45 ° (digital display with communication for any angle)
10. Dimensions: 3000 * 1000 * 220MM
11. Machine weight: 1300KG

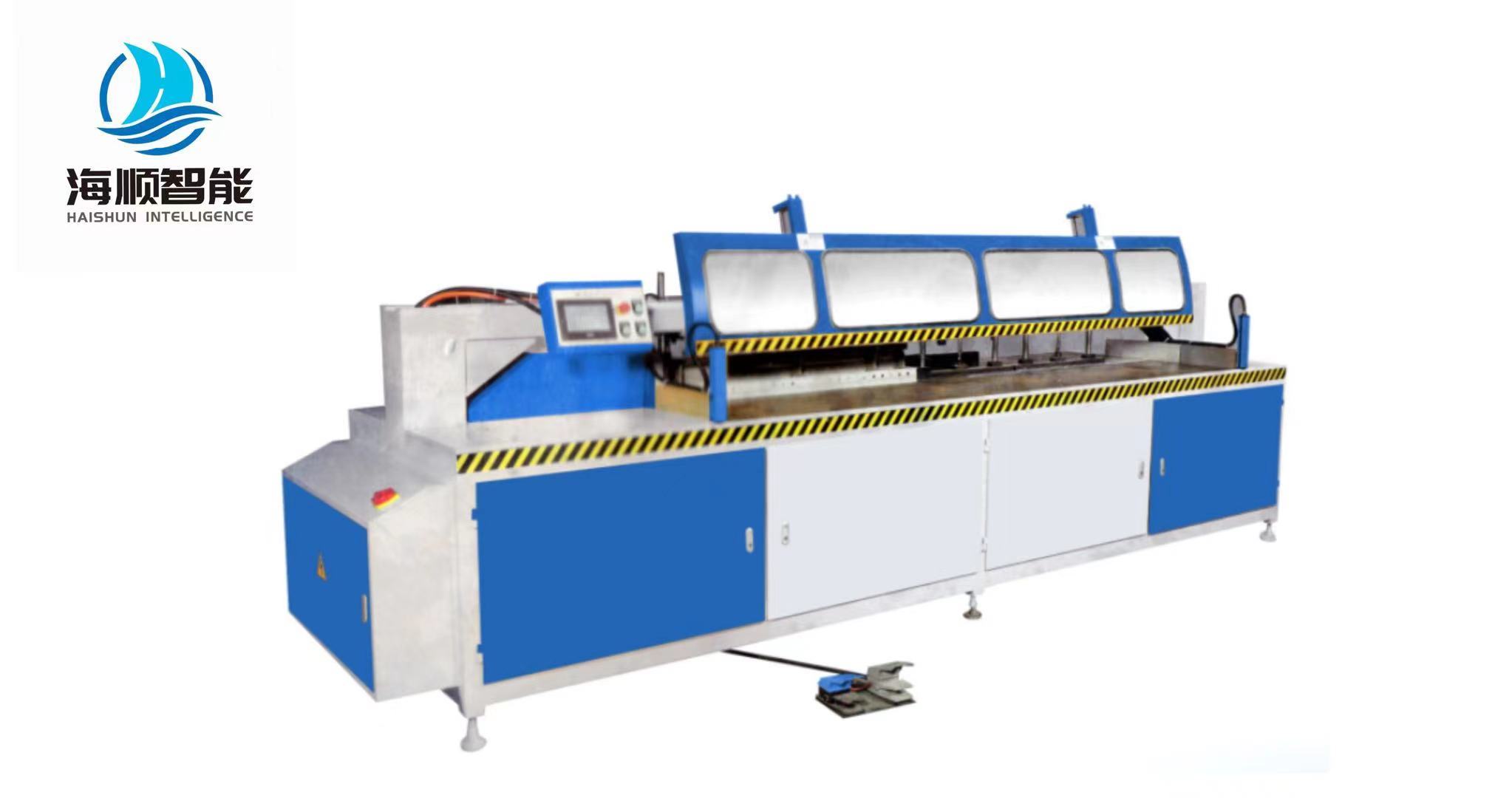

High-Power Motor for Efficient CuttingOur CNC Aluminum Template Cutting Saw HS-128AD-3000 is designed for precision and efficiency in aluminum cutting applications. Powered by a 5.5KW direct-coupled motor, this machine eliminates belt-driven inefficiencies, ensuring stable performance and reduced maintenance. Whether you're working with welding machine components or preparing aluminum formwork, this cutting saw delivers exceptional results.Precision Engineering for Superior AccuracyThe machine is equipped with SKF bearings from Sweden and high-precision Taiwan-imported linear guides, ensuring smooth motion and precise cutting. The use of these advanced components guarantees accuracy in aluminum cutting, which is essential for manufacturing aluminum welding machine parts and other precision-based applications.Advanced CNC System for Intelligent ControlFeaturing a Panasonic CNC system combined with Japanese servo motors, this cutting machine offers precise control over cutting angles and depths. Its anti-aluminum chip conductive system enhances efficiency, making it a reliable solution for industries involved in welding machine manufacturing and aluminum welding machine production.Adjustable Saw Blade for Versatile CuttingThe saw blade angle is adjustable from 90° to 45°, allowing for versatile cutting applications. This flexibility makes it ideal for preparing aluminum welding machine components and cutting aluminum sheets used in welding machine fabrication. The digital display ensures that every cut is positioned accurately for optimal results.User-Friendly and Safe DesignThis cutting machine is built with automatic saw blade lowering, center point pressing devices, and safety shields to prevent accidents. Its large workbench provides ample space for handling various aluminum materials, including those used in aluminum welding machine assembly.
Product Advantages
- Enhanced Efficiency: The direct-coupled motor design reduces transmission losses, leading to faster cutting cycles and improved productivity.
- Superior Precision: High-quality components ensure consistent accuracy in every cut, meeting stringent industry standards.
- Versatile Functionality: Adjustable cutting angles and programmable CNC controls allow for customization to specific project needs.
- Safety-Focused Design: Incorporation of safety features protects operators and minimizes the risk of accidents.
- Competitive Aluminum Welding Machine Price – High-quality results at an affordable cost.
About Us
Industry Positioning: Foshan Haishun Intelligent Equipment Co., Ltd. stands as a leading manufacturer specializing in aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.
Core Manufacturing Capabilities and Quality Assurance
- Independent R&D: Our in-house research and development team drives innovation, ensuring our products meet evolving industry standards.
- Collaborative Management: By integrating collaborative management practices, we streamline production processes to enhance efficiency.
- Quality Control: Product quality is our top priority, maintained through rigorous quality control measures.
Production Strength in Numbers
- Export Experience: With over 20 years in the export market, our products have reached more than 40 countries, including regions in Southeast Asia, the Middle East, Europe, Africa, and South America.
- Commitment to Sustainability: We are dedicated to sustainable development, focusing on energy-efficient manufacturing processes and the production of equipment that supports renewable energy sectors, such as photovoltaic solar processing equipment.
Customer Collaboration Process
- Inquiry: Clients reach out with specific requirements.
- Consultation: Our team provides tailored solutions based on client needs.
- Production: Equipment is manufactured adhering to strict quality standards.
- Delivery: Timely and secure shipment of products to the client's location.
- Support: Ongoing technical support and after-sales service ensure optimal equipment performance.
- Global Service Capability: Our extensive export experience and a network spanning over 40 countries enable us to offer localized services and support to clients worldwide.
Partner with Haishun to leverage cutting-edge technology and superior service for your equipment needs.
FAQ
Who are we?
We are Foshan Haishun Intelligent Equipment Co., Ltd., a manufacturer specializing in aluminum formwork processing equipment and related machinery, with over 20 years of export experience to more than 40 countries.
How can we guarantee quality?
Our dedicated technical production team prioritizes product quality, implementing strict quality control measures throughout the manufacturing process.
What can you buy from us?
We offer a range of equipment, including aluminum formwork processing equipment, photovoltaic solar processing equipment, industrial aluminum processing equipment, door and window curtain wall processing equipment, and old template post-processing equipment.
Why should you buy from us instead of other suppliers?
Our commitment to independent research and development, coupled with collaborative management and over two decades of export experience, ensures innovative, high-quality products that meet international standards.
What services can we provide?
We provide comprehensive services, including pre-sales consultation, customized equipment solutions, timely delivery, and ongoing technical support and after-sales service.
Elevate your aluminum processing capabilities with the CNC Aluminum Template Cutting Saw HS-128AD-3000. Contact us today to request a quote and discover how this precision cutting machine can enhance your production efficiency.
