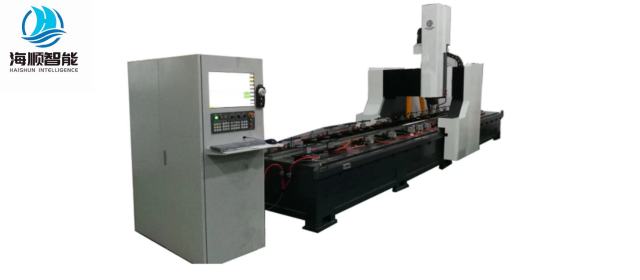

Equipment brief description:
1. The equipment has a total length of 4 meters/7 meters and a width of 2 meters, with an effective welding width of 250-600mm and an effective welding length of 3000mm/6000mm. It adopts a dynamic gantry structure.
2. The width of the equipment shall not exceed 2250mm and the height shall not exceed 2500mm, making it convenient for container loading.
3. The equipment is a steel structure welded frame. Through overall annealing treatment, the effect of removing internal stress is achieved. High precision large gantry processing equipment is used for processing, and the frame is clamped in one go to complete the processing of the guide rail fixing surface and the rack fixing surface, thereby ensuring the accuracy and stability of the equipment.
4. Suitable for friction stir welding and processing of various aluminum templates.
5. Adopting an automatic positioning and clamping system, two-dimensional welding on the same plane can be completed in one installation.
6. Operating system: Choose a German PA control system with Chinese characters.
7. The working head is a mechanical oil cooled spindle, equipped with a 7.5KW Yaskawa servo motor, to complete various welding tasks with high quality.
8. Work platform: T-shaped groove workbench, M16T nut.
9. Automatic lubrication system: intermittent automatic lubrication at the center of the motion mechanism.
10. Tool cooling method: Compressed air cooling is used
Main technical parameters:
|
project
|
unit
|
|
|
Machine tool travel
|
X
|
mm
|
3000/6000
|
|
|
Z
|
mm
|
250
|
|
Machining accuracy
|
location
|
mm
|
±0.1
|
|
|
Repeat positioning
|
mm
|
±0.05
|
|
|
Verticality of drilling and milling
|
mm/mm
|
0.1/100
|
|
|
Surface roughness of cutting surface
|
um
|
Ra6.3 um
|
|
Feed Speed
|
X axle
|
m/min
|
35
|
|
|
Z axle
|
m/min
|
15
|
|
main shaft
|
Power/speed
|
kw/rpm
|
7.5/3000
|
|
servo motor
(Yaskawa, Japan)
|
X
|
Kw
|
3
|
|
|
Z
|
Kw
|
1.3
|
|
Welding depth
|
mm
|
2－5
|
|
overall dimension
|
mm
|
4800×1800×2000
|
|
External dimensions of electrical cabinet box
|
mm
|
1200×1600×600
|
|
Required power source
|
power
|
KVA
|
18KW 380V 40A
|
|
|
pressure
|
Mpa
|
0.6～0.8
|
Optimized Design for Versatile WeldingOur aluminum welding machine is built with a dynamic gantry structure, supporting welding lengths of 4 to 7 meters and widths from 250mm to 600mm. This robust design ensures seamless welding for different aluminum templates, making it an ideal welding machine for large-scale manufacturing needs.
Precision Engineering for High-Quality WeldsManufactured with a steel-welded frame and processed using high-precision gantry machinery, this welding machine undergoes comprehensive annealing to eliminate internal stress. This results in consistent, accurate welding outcomes, ensuring superior weld strength and durability.Advanced Automation for Higher EfficiencyEquipped with a German PA control system and user-friendly interface, our aluminum welding machine enhances productivity with automatic positioning and clamping. This allows for two-dimensional welding on the same plane in a single setup, significantly reducing operational time and costs.Powerful Spindle for Consistent PerformanceDriven by a 7.5KW Yaskawa servo motor, the oil-cooled mechanical spindle delivers high-speed and stable operation. This welding machine ensures smooth and uniform welds, minimizing defects and maximizing production efficiency.User-Friendly and Versatile Work PlatformThe T-shaped groove workbench, designed with M16T nuts, provides stability and flexibility for various aluminum welding machine applications. Whether for structural aluminum, formwork, or other specialized welding tasks, this machine offers unmatched adaptability.
Product Advantages
- Enhanced Efficiency: The dynamic gantry structure and automatic positioning system streamline the welding process, reducing setup times and increasing throughput.
- Exceptional Precision: High-precision components and robust construction ensure consistent and accurate welds, meeting stringent quality standards.
- Versatile Application: Designed to handle various aluminum templates, the machine offers flexibility across multiple welding applications.
- User-Centric Operation: The intuitive control system and ergonomic work platform enhance operator comfort and productivity.
- Compact Footprint: With dimensions optimized for container loading, the machine offers easy transportation and installation.
