Description

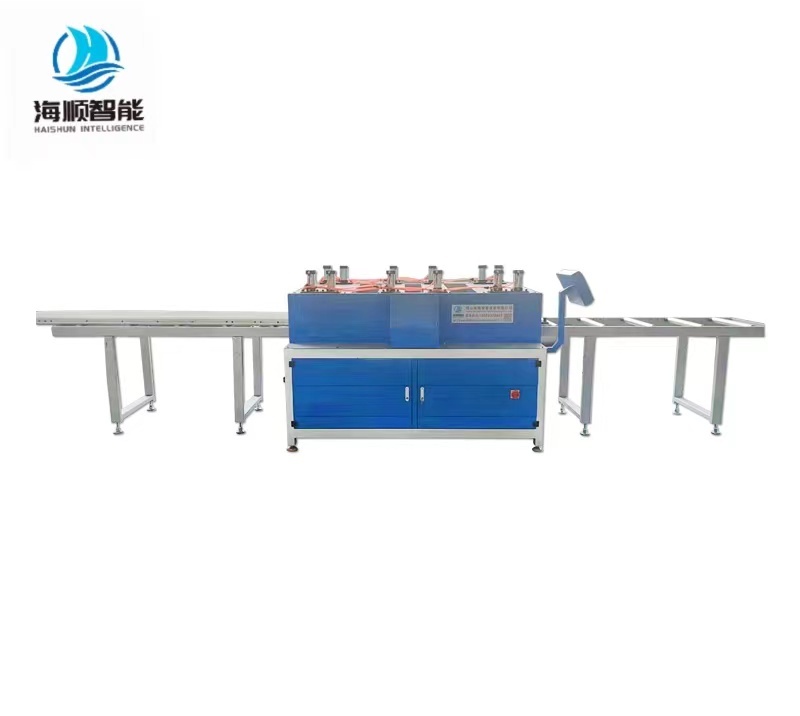

Model : HS-U600D
2.Rated air pressure 0.4-0.6Mpa
3 rated voltage 380V
4. Left spindle motor 3.7KW
5. Right spindle motor 3.7KW
6. Left brush front polishing motor 1.5 KW
7 .left brush polishing motor 1.5 KW
8. Right brush front polishing motor 1.5 KW
9. Right brush front and rear polishing motor 1.5 KW
10. vacuum cleaner 1.5 KW
11. front flat brush 3KW
12 .rear flat brush 3KW
13 .servo drive 750W
14 .feeding frequency converter ZQ200M-2R2G3B
15 .spindle frequency converter ZQ200M-7R5G3B
16 .devices with a power of 14.9 KW
17. Equipment length, width, and height 6000x2000x1500mm
18. machine weight 1800Kg
19 .milling width 50-600mm
20. milling cutting length 500-3000mm
21. Equipment accuracy ± 0.mm
22. Production efficiency 3-6m/min
